NEW Vacuum EV Station

Designed and built for a customer in the US

Our customer in the US, Firefly Farms, asked for our help in automating their manual EV, but they also need to present the intestine after for inspection. We have already designed a table top EV unit which is a very sucessful machine, and our vent cutter, so it was just a case of intigrating these with the other elements required and fitting it into a fully made up compact station that would be easy to ship across to the US, and simple for our customer to set up the other end.

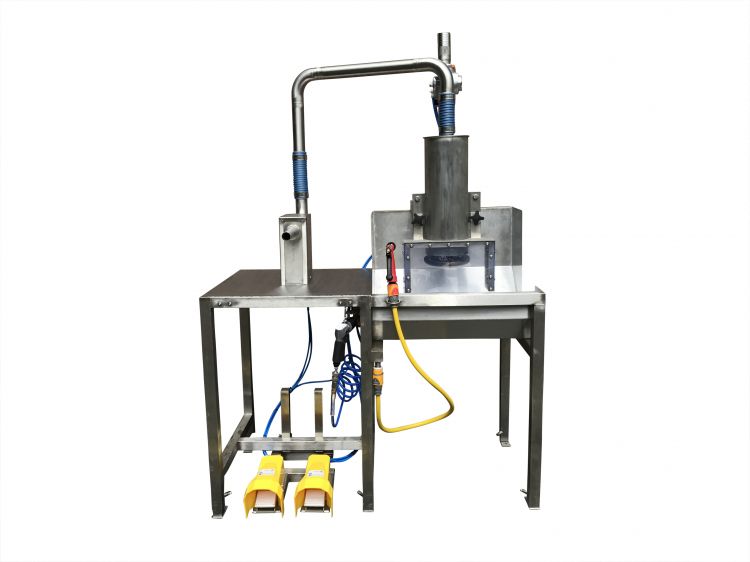

Here is the result, our Vacuum EV Station, which has been designed for small manual processors who want to automate their EV process without going on line.

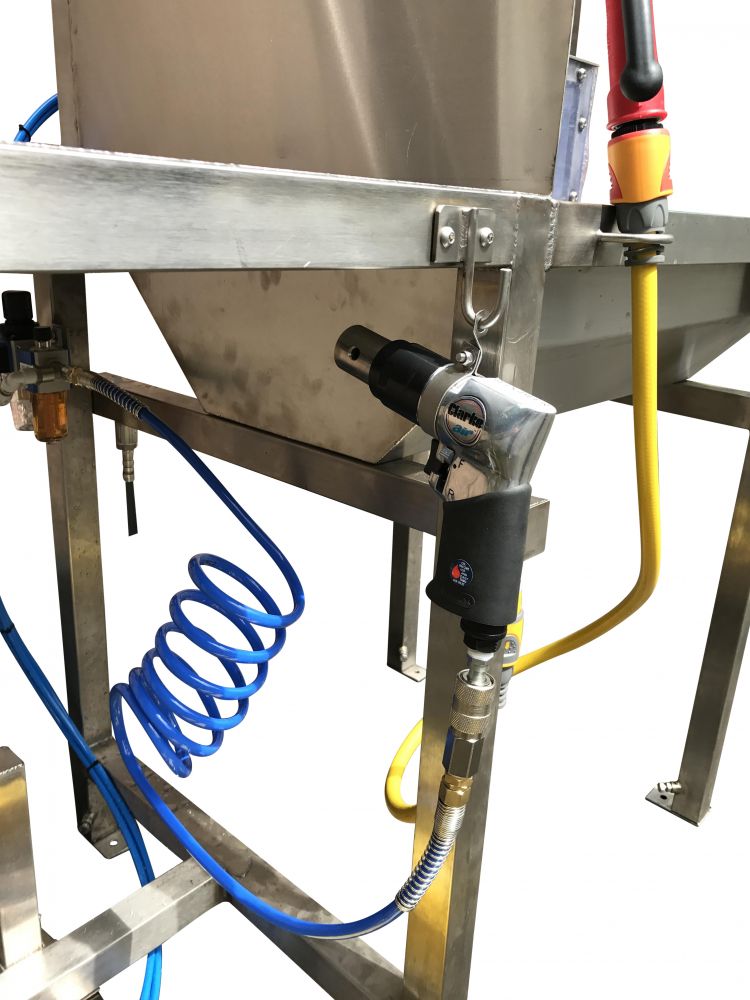

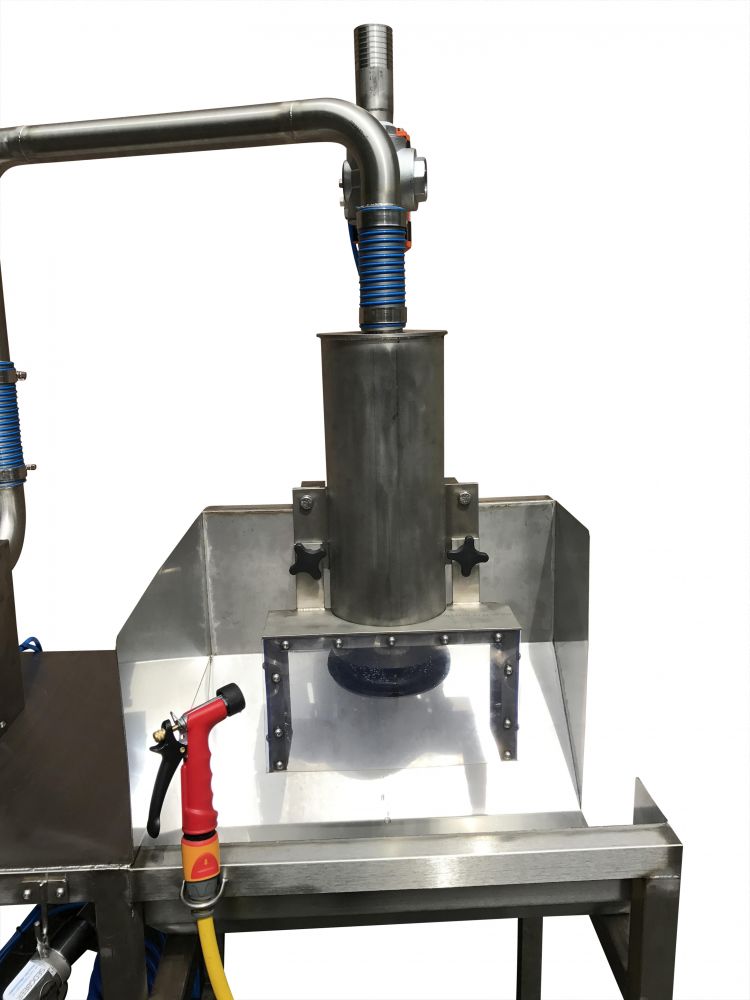

This station enables one operator to cut the vent of the bird with our pneaumatic vent cutter, which is hung from the front of the table, and then vacuum the intestine out using the eviscerator mounted onto the top of the table.

Another important feature of this machine is that the intestine is then able to be droped into the trough next to the operator, to allow visual inspection if required. A water jet follows to clean the trap, and there is also a hose gun mounted onto the side of the trough to enable washdown.

This machine requires vacuum, a compressed air supply and a water connection to operate.
