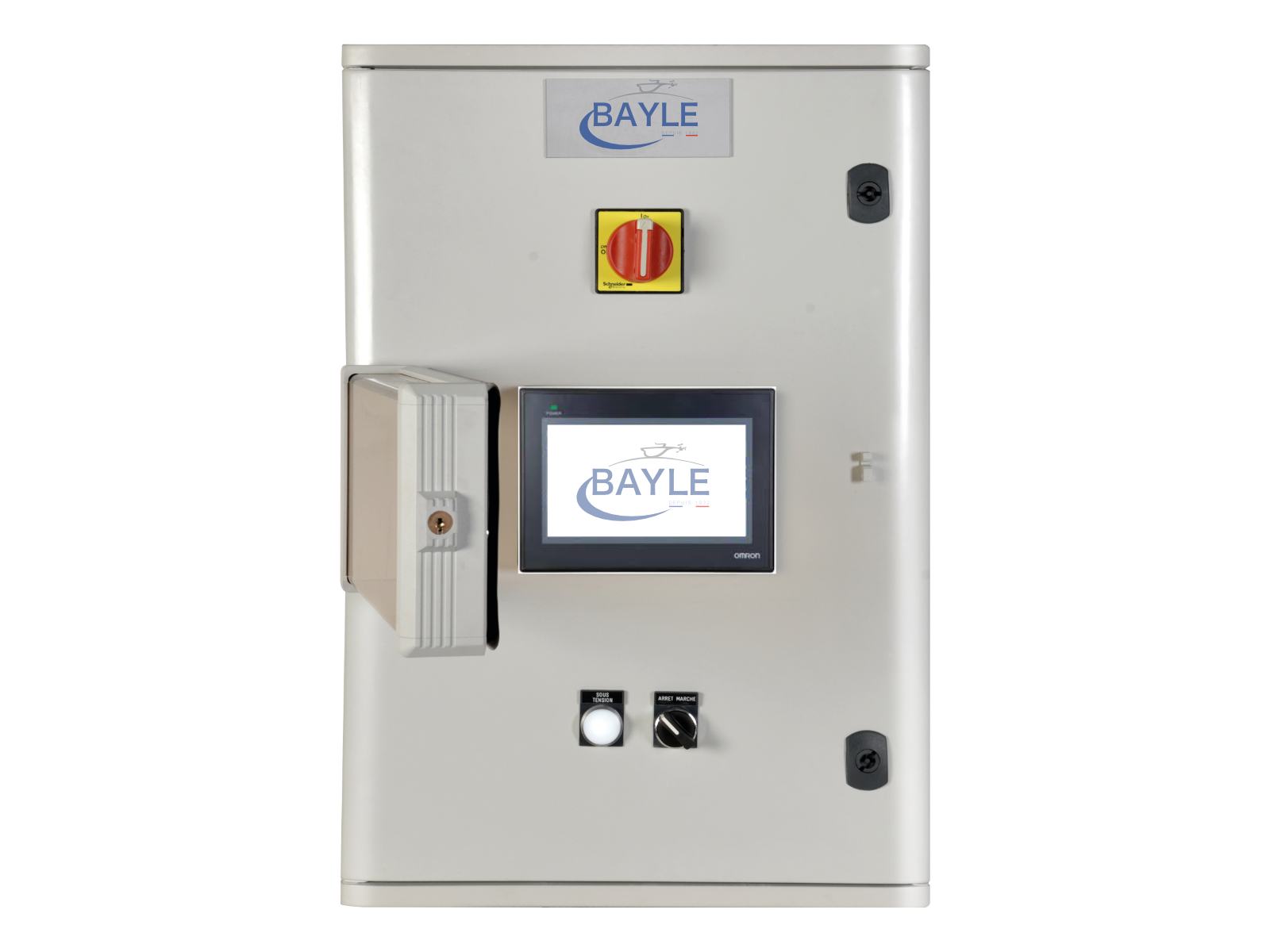

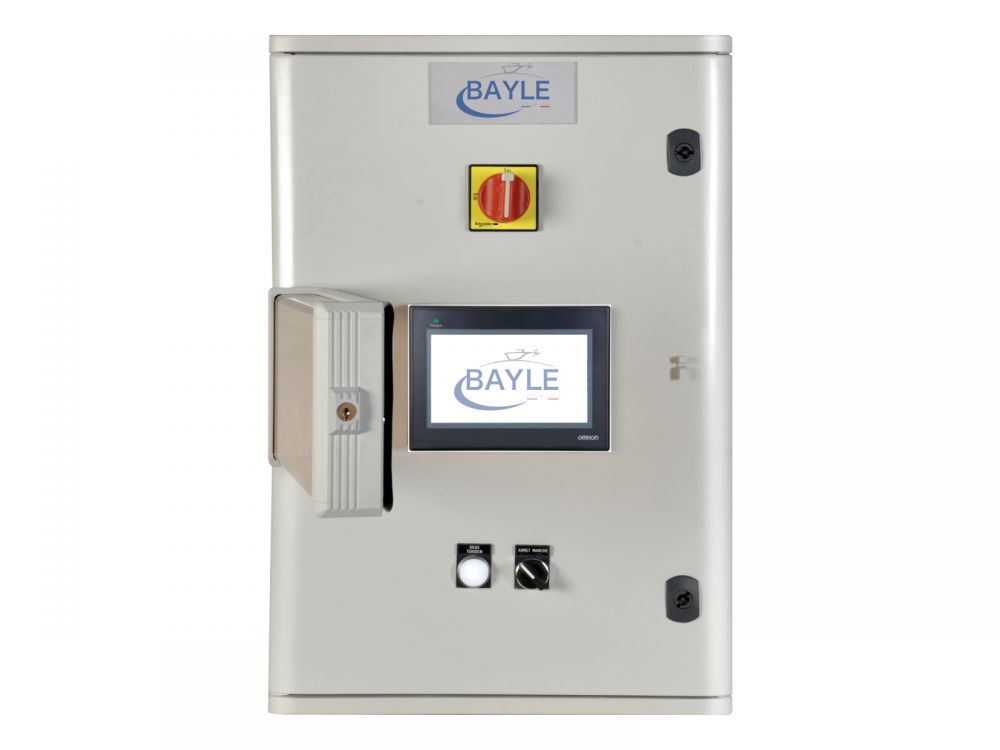

The SHF cabinet is a simple high frequency stunner system that meets the latest standards in terms of animal welfare.
The SHF is recommended for slaughterhouses with a production capacity of up to 150,000 poultry per year.
The 5” touchscreen of the cabinet allows the display of the actual voltage, frequency, current on the front screen. All of these stunning settings are recorded on the USB key provided with the SHF box. Data can be retrieved locally or remotely.
The SHF has the latest 5.0 version for a stunning of poultry that is always more efficient and respectful of animal welfare.
The poultry stunner box also features a cranial stunning with poultry record data.
This model of stunner cabinet is a 230V single-phase cabinet with a maximum output intensity of 2A.
The ranges are as follow:
Frequency: 40 to 1 000Hz
Tension: 48 to 240V
Dimensions: 400 x 300 x 200 mm
The SHF V5 stunner is compatible with our Bayle Smart control supervisory solution.
