Part No.
|

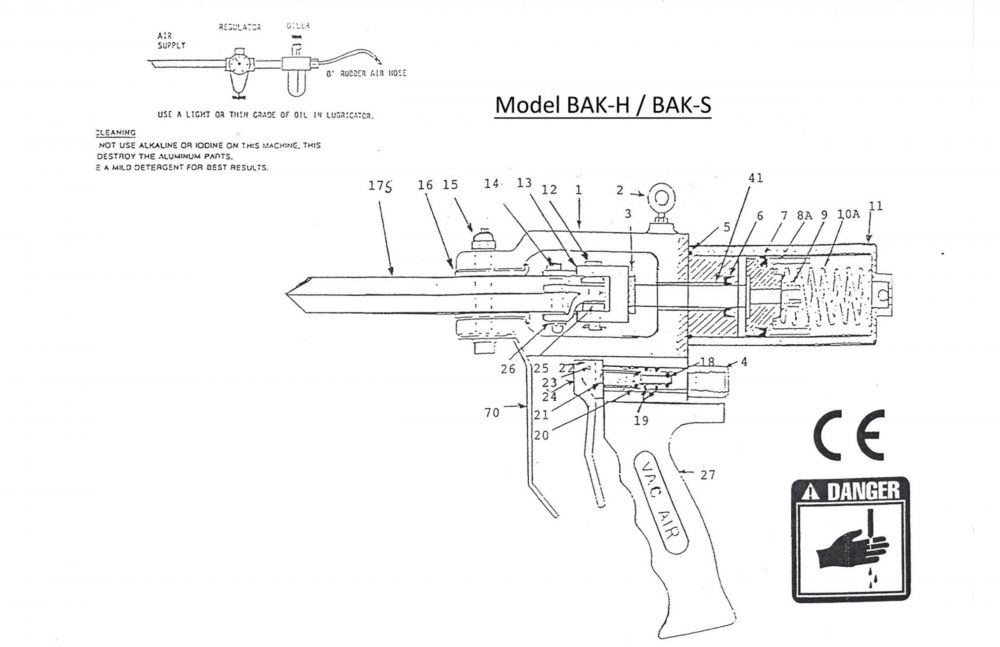

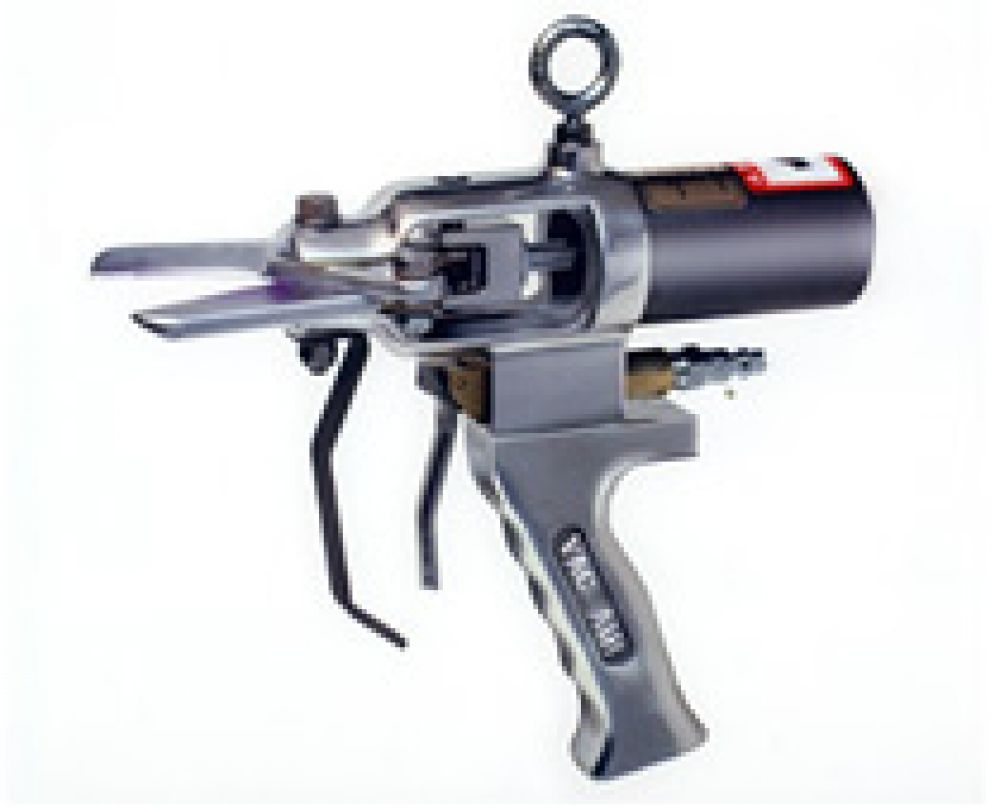

BAK-H / BAK-S Parts list
|
| 1 |
Body with trigger guard |
| 2 |
Eyebolt |
| 3 |
Cushion |
| 4 |
Valve air coupling |
| 5 |
Body seal o-ring |
| 6 |
Piston shaft seal |
| 7 |
Piston seal |
| 8A |
Piston |
| 9 |
Locknut and washers |
| 10A |
Spring |
| 11 |
Cylinder body |
| 12 |
Piston shaft pin and cotter key |
| 13 |
Piston shaft |
| 14 |
Blade shoulder bolt S.S. |
| 15 |
Blade hinging body bolt, locknut |
| 16 |
Set of brass shoes |
| 17 |
Set of blades standard |
| 17T |
Blades 3"or 4" opening |
| 18 |
Air intake o-ring |
| 19 |
Static o-ring (2) |
| 20 |
Air exhaust o-ring |
| 21 |
Air valve |
| 22 |
Brass air body |
| 23 |
Trigger pin |
| 24 |
Trigger and set screw |
| 25 |
Outside hinging plates |
| 26 |
Inside hinging arm |
| 27 |
Handle and set screw |
| 30 |
Complete set of o-rings #3,5,6,7,18,20 & 19(2) |
| 31 |
Trigger o-ring kit #18,20 & 19(2) |
| 41 |
Brass bushing |
| 44 |
Trigger assembly #4,18,20,21,22,23,24 & 19(2) |
| 50 |
Hose quick disconnect |
| 59 |
Regulator, lubricator assembly #60,61,62,63 &50 |
| 60 |
Regulator |
| 61 |
Lubricator |
| 62 |
Gauge |
| 63 |
Rubber air hose 8 foot long |
| 64 |
5 lb. reel tool balancer S.S./nylon |
| 66 |
Electric blade sharpener |
| 67 |
Blade sharpener stone |
| 68 |
O-ring extractor kit |
| 69 |
Spare parts kit #30,12,15,14(2), & 10A(2) |
| 70 |
Trigger guard |
